Metallized Polyester Film Capacitors Type CL21

Reference Standard
IEC 60384-2（GB/T7332）
GB/T2693-2001

Introduction
The products are made of metalized Polypester film,non-inductive construction , radial CP wire , unique method of spaying metal.And coating technology .
Usage
Suitable for blocking, by-pass and coupling of DC and signals to VHF range. Widely used in filter and low pulse circuits.

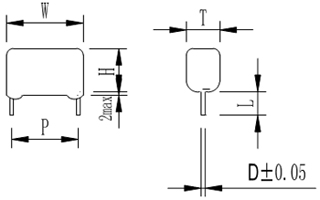

Outline Drawing

Specifications
Operating temp range	-40℃ ~ +105℃	Withstand voltage	1.6Un / 5S
Capacitance range	0.01μF ~ 2.2μF	Insulation resistance	C≤0.33μF,Rs≥9000MΩ (20℃1min)
Rated voltage	250V/400V/630V ( DC )	Insulation resistance	C＞0.33μF,C×Rs≥3000S(20℃1min)
Capacitance tolerance	±5%(J)、±10%(K)	Features	10 mm to 31 mm lead pitch.
Dissipation factor	≤10×10-3 ( 20℃ f=1KHz )	Climatic category	40 / 105 / 21

Dimensions(mm)
Cap （μF）	250VDC					400VDC					630VDC
Cap （μF）	W	H	T	P	d	W	H	T	P	d	W	H	T	P	d
0.1	12.0	11.0	5.5	10.0	0.6	12.5	13.5	7.0	10.0	0.6	18.0	14.5	7.0	15.0	0.8
0.22	12.0	13.5	7.0	10.0	0.6	18.0	14.0	7.0	15.0	0.8	18.0	17.0	9.5	15.0	0.8
0.33	18.0	13.0	6.5	15.0	0.8	18.0	15.0	8.5	15.0	0.8	18.5	18.5	11.0	15.0	0.8
0.47	18.0	14.0	7.5	15.0	0.8	24.0	15.0	8.5	20.0	0.8	24.0	19.0	11.0	20.0	0.8
0.56	18.0	15.0	8.0	15.0	0.8	24.0	16.0	9.0	20.0	0.8	24.0	21.0	11.5	20.0	0.8
0.68	18.0	15.5	9.0	15.0	0.8	24.0	17.5	9.5	20.0	0.8	30.0	21.0	11.5	26.0	0.8
0.82	24.0	16.0	7.5	20.0	0.8	30.0	17.5	9.0	26.0	0.8	30.0	22.5	12.5	26.0	0.8
1.0	24.0	16.5	8.5	20.0	0.8	30.0	18.5	10.0	26.0	0.8	35.0	21.0	12.5	31.0	0.8
1.5	24.5	18.0	10.0	20.0	0.8	30.0	20.0	12.5	26.0	0.8
2.0	30.0	17.0	11.0	26.0	0.8	35.0	22.0	11.0	31.0	0.8
2.2	30.0	18.5	12.0	26.0	0.8	35.0	23.0	12.0	31.0	0.8
Special requirements can be designed at the request of customers.
